B82725J2802N020

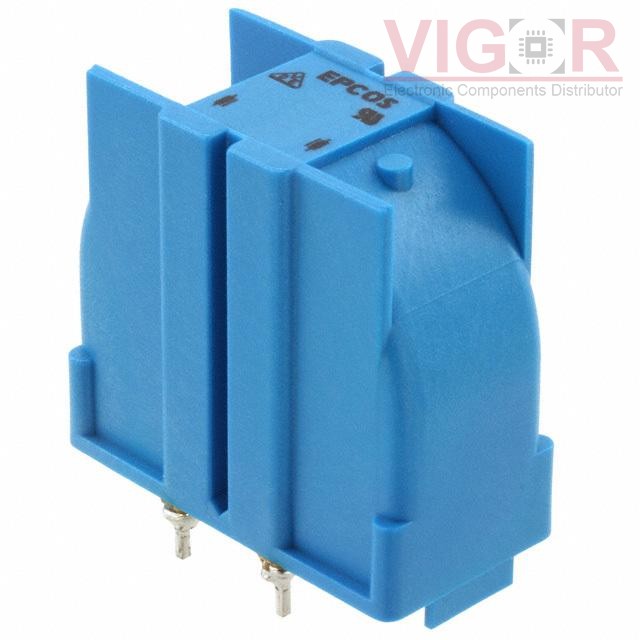

Product image
Product thumb
Part No :

B82725J2802N020

Manufacturer
TDK EPCOS
VIGOR # :

4037736

Description
CMC 3.9MH 8A 2LN TH
Catalog
Common Mode Chokes
DataSheet
B82725J2802N020 PDF
Country of origin
-
Date code
-
ads
B82725J2802N020 Specifications
Type Description
Series:B82725
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:3.9 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):8A
DC Resistance (DCR) (Max):31mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:1.591" L x 0.846" W (40.40mm x 21.50mm)
Height (Max):1.575" (40.00mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 232
Shipped from
HK warehouse
Expected Shipping Date
May 17 - May 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $6.9000 $6.90
10 $6.2121 $62.12
160 $4.4177 $706.83
640 $4.1416 $2 650.59
1120 $3.8654 $4 329.30

Current price of B82725J2802N020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
CM9900-125

CM9900-125

CMC 1.2MH 880MA 2LN TH

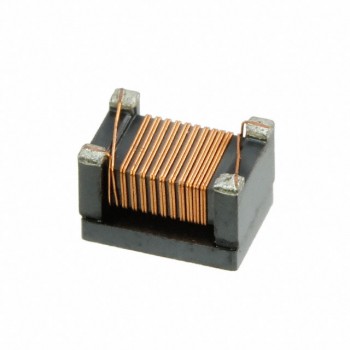

PE-1210ACC510STS
