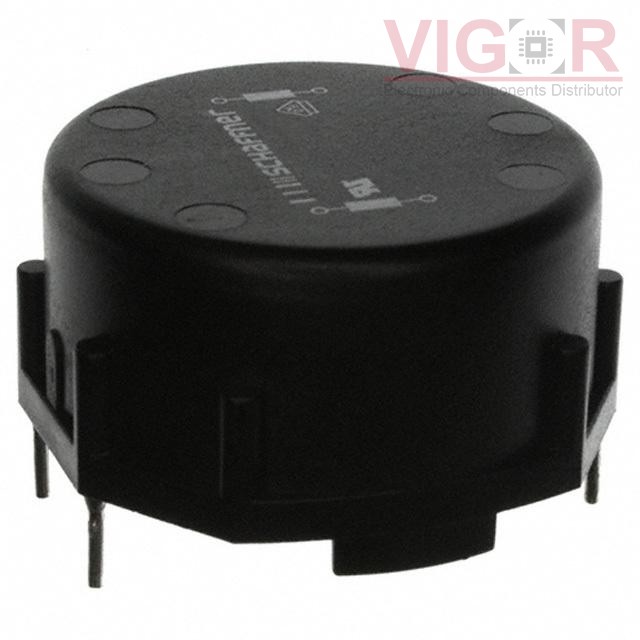

RN152-2-02-18M

Part No :: RN152-2-02-18M

Manufacturer: Schaffner EMC, Inc.

Description: CMC 18MH 2A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RN152-2-02-18M PDF

Availability: 100 pieces

Current price of RN152-2-02-18M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RN152-2-02-18M Specifications

Type	Description
Series:	RN
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	18 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	350mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.693" L x 1.646" W (43.00mm x 41.80mm)
Height (Max):	0.996" (25.30mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
