DR221-474AE

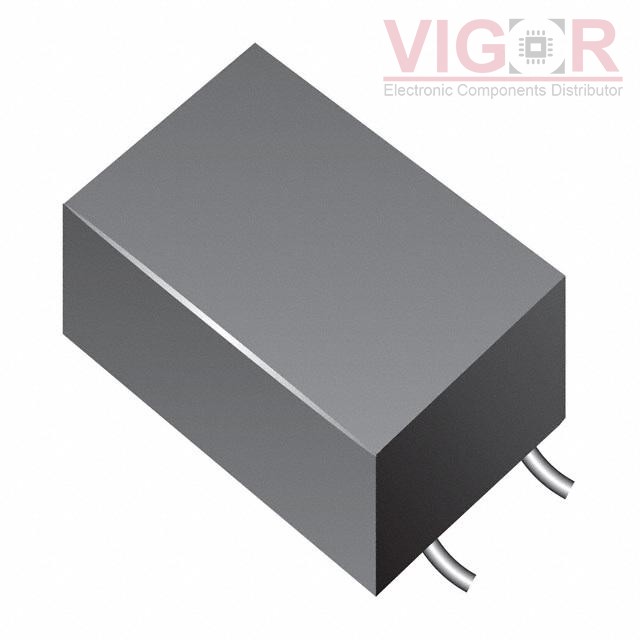

Image is for reference,
please contact us to get the real picture

Part No :: DR221-474AE

Manufacturer: J.W. Miller / Bourns

Description: CMC 470UH 100MA 2LN SMD

Catalog: Common Mode Chokes

DataSheet: DR221-474AE PDF

Availability: 6148 pieces

Unit Price: ~~$1.79000~~

Current price of DR221-474AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DR221-474AE Specifications

Type	Description
Series:	DR221
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	470 µH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	350mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	100V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.197" L x 0.130" W (5.00mm x 3.30mm)
Height (Max):	0.130" (3.30mm)
Package / Case:	Horizontal, 4 Flat Lead

Please confirm the specifications of the products when ordering.
