RB6522-16-1M0

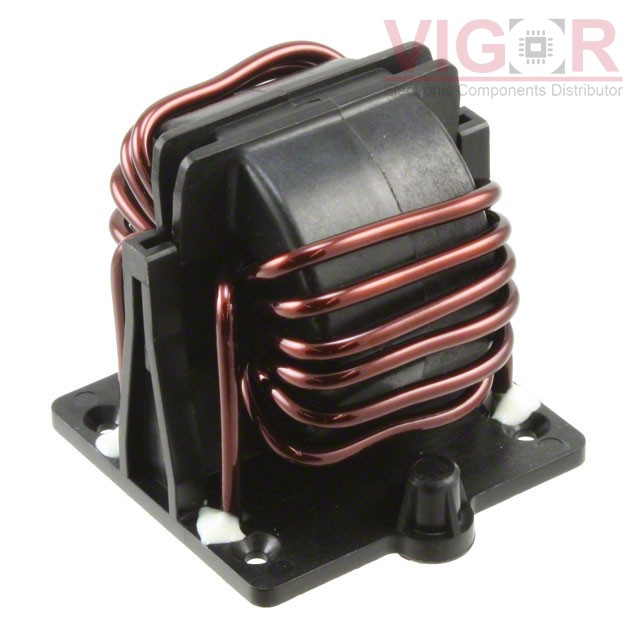

Image is for reference,
please contact us to get the real picture

Part No :: RB6522-16-1M0

Manufacturer: Schaffner EMC, Inc.

Description: COMMON MODE CHOKE 1MH 16A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RB6522-16-1M0 PDF

Availability: 41 pieces

Unit Price: ~~$12.19000~~

Current price of RB6522-16-1M0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RB6522-16-1M0 Specifications

Type	Description
Series:	RB
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	16A
DC Resistance (DCR) (Max):	4.6mOhm (Typ)
Voltage Rating - DC:	1000V (1kV)
Voltage Rating - AC:	600V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.846" L x 1.772" W (46.90mm x 45.00mm)
Height (Max):	2.047" (52.00mm)
Package / Case:	Vertical, 4 PC Pin
