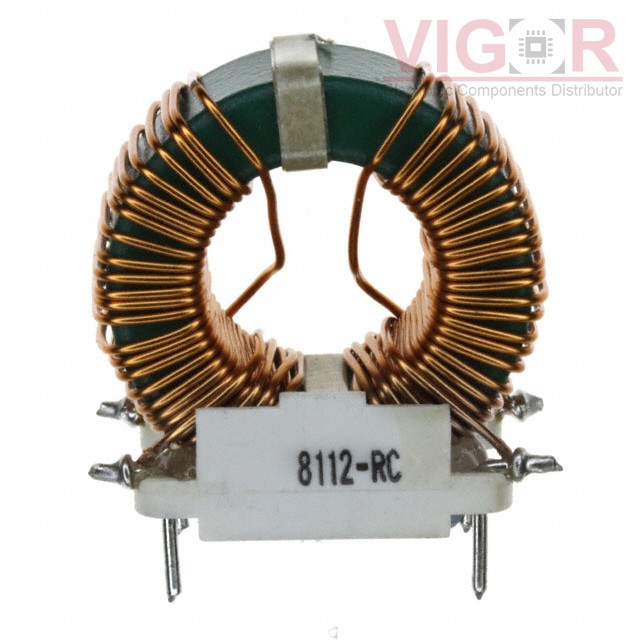

8112-RC

Image is for reference,
please contact us to get the real picture

Part No :: 8112-RC

Manufacturer: J.W. Miller / Bourns

Description: CMC 8MH 5.6A 2LN TH

Catalog: Common Mode Chokes

DataSheet: 8112-RC PDF

Availability: 1361 pieces

Unit Price: ~~$8.78000~~

Current price of 8112-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

8112-RC Specifications

Type	Description
Series:	8100
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	8 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5.6A
DC Resistance (DCR) (Max):	55mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max):	1.450" (36.83mm)
Package / Case:	Vertical, 4 PC Pin
