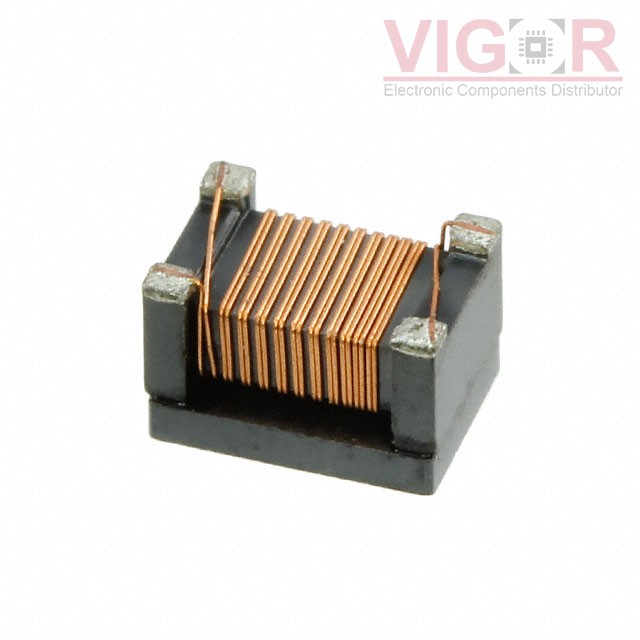

Part No :

PE-1812ACC220STS

Manufacturer
PulseLarsen Antenna
VIGOR # :

4037955

Description
CMC 310MA 2LN 1.2 KOHM AEC-Q200
Catalog
Common Mode Chokes
DataSheet
PE-1812ACC220STS PDF
Country of origin
-
Date code
-
ads
Type Description
Series:ChipChoke™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:1.2 kOhms @ 10 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):310mA
DC Resistance (DCR) (Max):600mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):0.118" (3.00mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Jan 03 - Jan 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.92 $0.92
500 $0.48 $241.50
1000 $0.39 $391.00
2500 $0.37 $920.00
5000 $0.36 $1 782.50
12500 $0.34 $4 312.50
25000 $0.33 $8 337.50

Current price of PE-1812ACC220STS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
