PLT-02

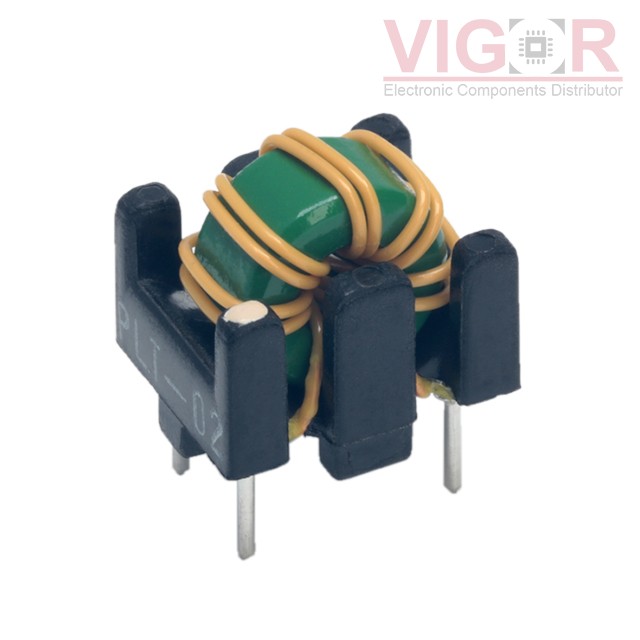

Product image
Product thumb
Part No :

PLT-02

Manufacturer
KEMET
VIGOR # :

4037975

Description
TRANSFORMER, 7.5UH MIN, 0.30A, 5
Catalog
Common Mode Chokes
DataSheet
PLT-02 PDF
Country of origin
-
Date code
-
ads
PLT-02 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:7.5 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):300mA
DC Resistance (DCR) (Max):55mOhm
Voltage Rating - DC:-
Voltage Rating - AC:110V
Operating Temperature:-25°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.453" L x 0.374" W (11.50mm x 9.50mm)
Height (Max):0.472" (12.00mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.1000 $5.10
10 $4.6750 $46.75
100 $3.0600 $306.00
500 $2.7200 $1 360.00
1000 $2.5500 $2 550.00
2500 $2.4650 $6 162.50

Current price of PLT-02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
SC-03-06G

SC-03-06G

CMC 600UH 3A 2LN TH

B82791H0015A030

B82791H0015A030

CMC 47MH 100MA 2LN TH

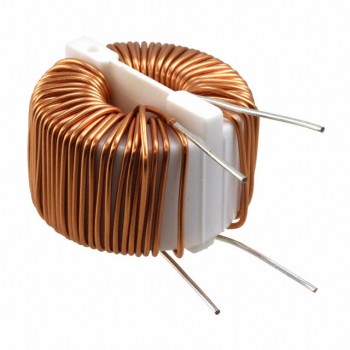

SC-05-500
