7446326002

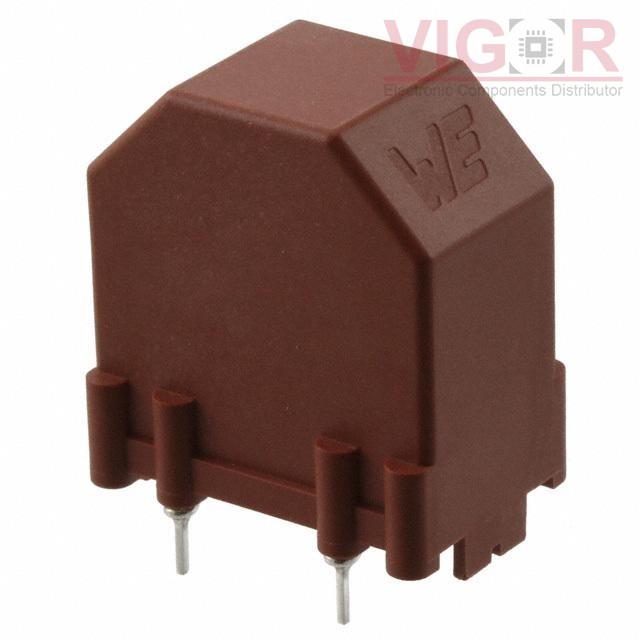

Image is for reference,
please contact us to get the real picture

Part No :: 7446326002

Manufacturer: Würth Elektronik Midcom

Description: CMC 1.8MH 6A 2LN TH

Catalog: Common Mode Chokes

DataSheet: 7446326002 PDF

Availability: 21 pieces

Unit Price: ~~$5.35000~~

Current price of 7446326002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7446326002 Specifications

Type	Description
Series:	WE-LF
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1.8 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	6A
DC Resistance (DCR) (Max):	23mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.043" L x 0.728" W (26.50mm x 18.50mm)
Height (Max):	1.201" (30.50mm)
Package / Case:	Vertical, 4 PC Pin
