DCM181320V1-332NHF

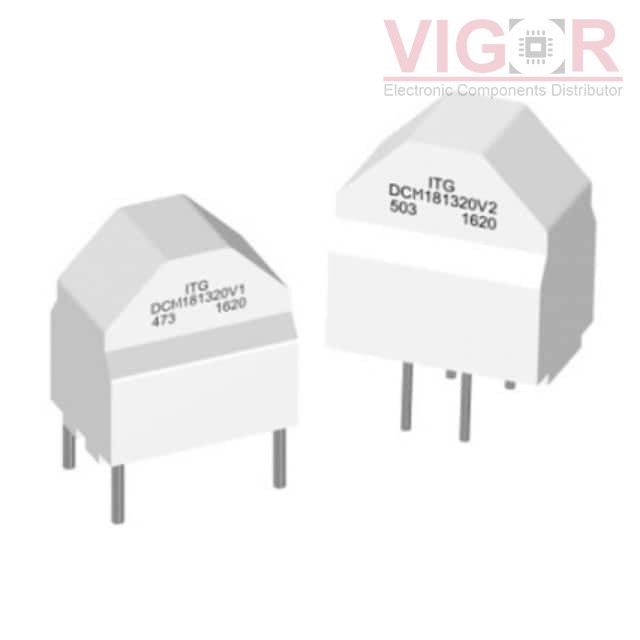

Image is for reference,
please contact us to get the real picture

Part No :: DCM181320V1-332NHF

Manufacturer: ITG Electronics, Inc.

Description: CMC 3.3MH 1.5A 2LN TH

Catalog: Common Mode Chokes

DataSheet: DCM181320V1-332NHF PDF

Availability: 30 pieces

Unit Price: ~~$3.00000~~

Current price of DCM181320V1-332NHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DCM181320V1-332NHF Specifications

Type	Description
Series:	DCM181320V
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3.3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.5A
DC Resistance (DCR) (Max):	140mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-55°C ~ 130°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.728" L x 0.531" W (18.50mm x 13.50mm)
Height (Max):	0.807" (20.50mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
