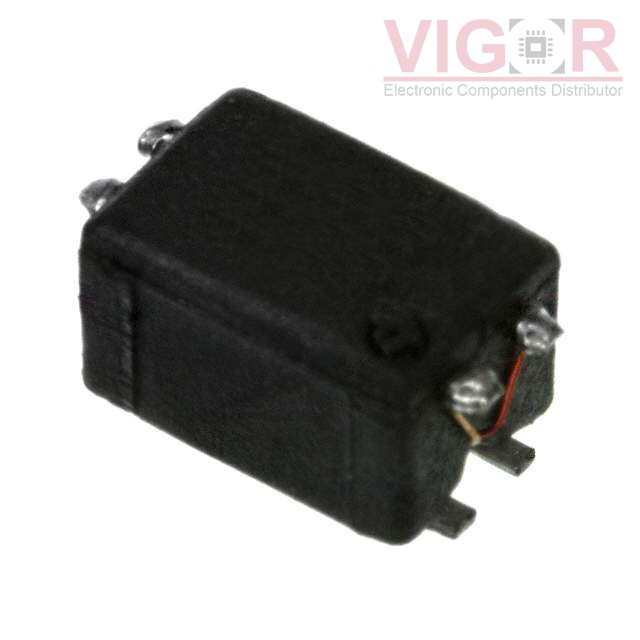

744242471

Part No :: 744242471

Manufacturer: Würth Elektronik Midcom

Description: CMC 470UH 400MA 2LN 2.2 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: 744242471 PDF

Availability: 3225 pieces

Current price of 744242471 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744242471 Specifications

Type	Description
Series:	WE-SLM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	2.2 kOhms @ 15 MHz
Inductance @ Frequency:	470 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	400mA
DC Resistance (DCR) (Max):	350mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max):	0.138" (3.50mm)
Package / Case:	Horizontal, 4 Flat Lead
