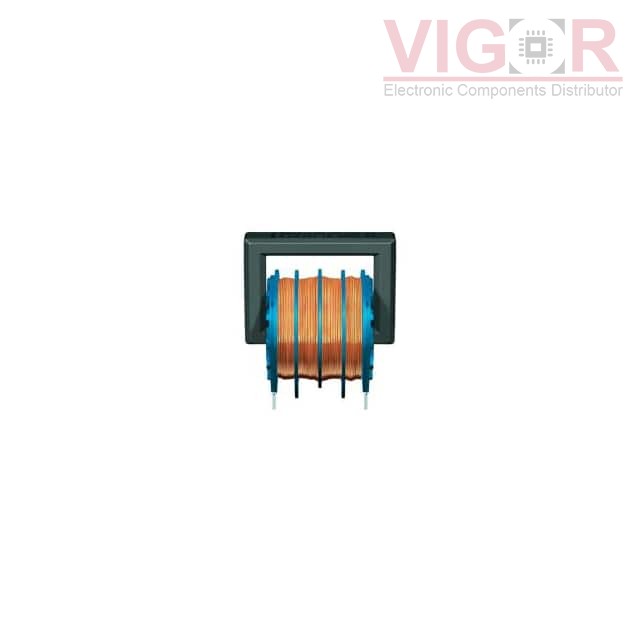

B82614R2242A030

Part No :: B82614R2242A030

Manufacturer: TDK EPCOS

Description: CMC 750UH 2.4A 2LN TH

Catalog: Common Mode Chokes

DataSheet: B82614R2242A030 PDF

Availability: 0 pieces

Current price of B82614R2242A030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82614R2242A030 Specifications

Type	Description
Series:	B82614
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	750 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.4A
DC Resistance (DCR) (Max):	330mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.280" L x 0.827" W (32.50mm x 21.00mm)
Height (Max):	1.220" (31.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
