ACT1210L-201-2P-TL00

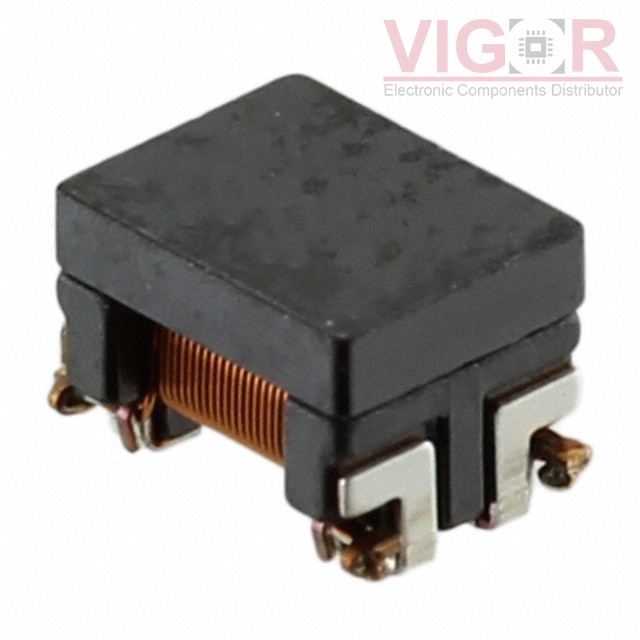

Image is for reference,
please contact us to get the real picture

Part No :: ACT1210L-201-2P-TL00

Manufacturer: TDK Corporation

Description: CMC 200UH 70MA 2LN SMD

Catalog: Common Mode Chokes

DataSheet: ACT1210L-201-2P-TL00 PDF

Availability: 5680 pieces

Unit Price: ~~$1.95000~~

Current price of ACT1210L-201-2P-TL00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACT1210L-201-2P-TL00 Specifications

Type	Description
Series:	ACT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	200 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	70mA
DC Resistance (DCR) (Max):	5.5Ohm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max):	0.098" (2.50mm)
Package / Case:	Horizontal, 4 PC Pad
