B82791G2701N001

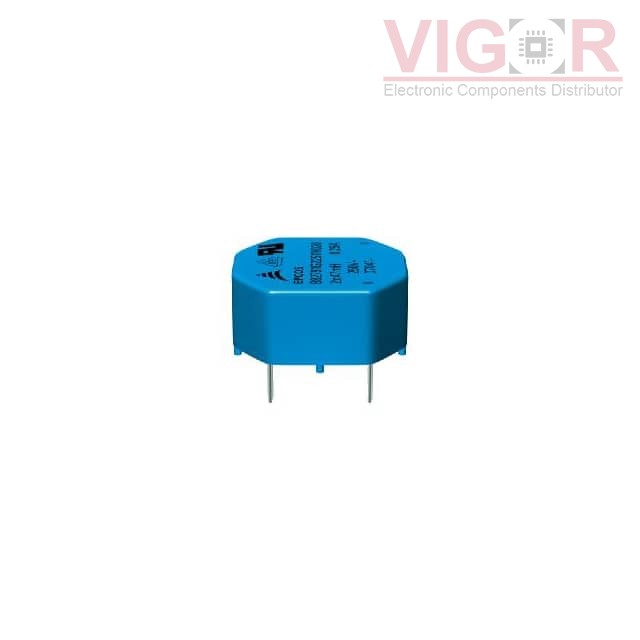

Image is for reference,
please contact us to get the real picture

Part No :: B82791G2701N001

Manufacturer: TDK EPCOS

Description: CMC 4.7MH 700MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: B82791G2701N001 PDF

Availability: 0 pieces

Unit Price: ~~$1.76536~~

Current price of B82791G2701N001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82791G2701N001 Specifications

Type	Description
Series:	B82791
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	4.7 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	700mA
DC Resistance (DCR) (Max):	440mOhm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.689" L x 0.689" W (17.50mm x 17.50mm)
Height (Max):	0.315" (8.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
