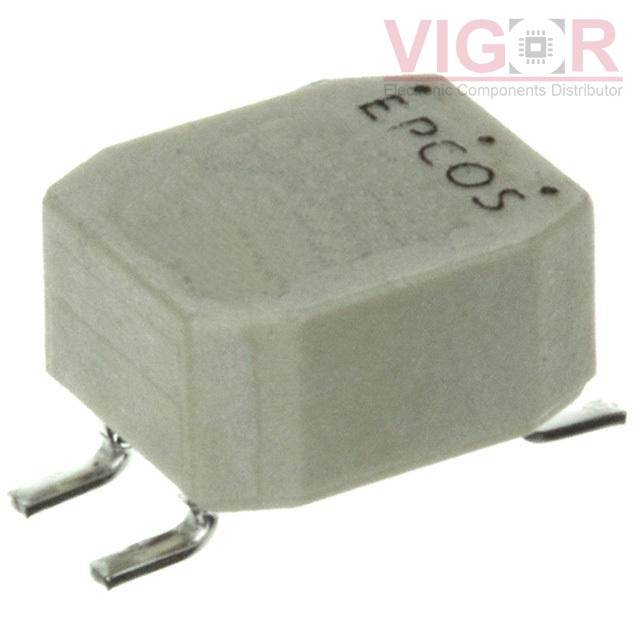

B82793C0225N265

Part No :: B82793C0225N265

Manufacturer: TDK EPCOS

VIGOR # :: 4038250

Description: CMC 2.2MH 500MA 2LN SMD AEC-Q200

Catalog: Common Mode Chokes

DataSheet: B82793C0225N265 PDF

Country of origin: -

Date code: -

B82793C0225N265 Specifications

Type	Description
Series:	B82793
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.2 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	400mOhm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.280" L x 0.236" W (7.10mm x 6.00mm)
Height (Max):	0.189" (4.80mm)
Package / Case:	Horizontal, 4 Gull Wing

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3283

Shipped from

HK warehouse

Expected Shipping Date

Jan 11 - Jan 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.57~~	~~$2.57~~
1500	~~$1.23~~	~~$1 841.40~~
3000	~~$1.19~~	~~$3 564.00~~
7500	~~$1.15~~	~~$8 613.00~~

Current price of B82793C0225N265 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

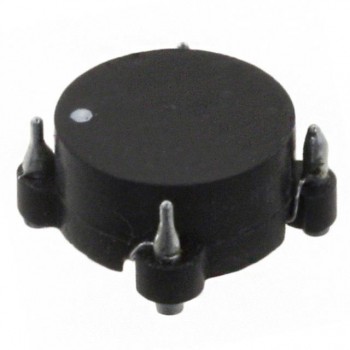

CM6350R-473

CMC 47UH 5A 2LN SMD

SH-211

CMC TROID, NI-ZN, 0.5UH, TH UL94

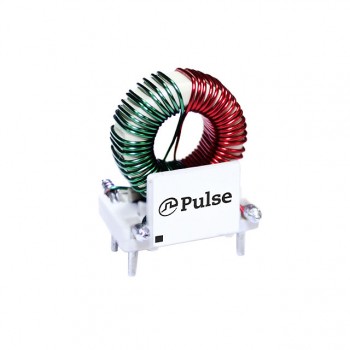

PA3747.306NL
