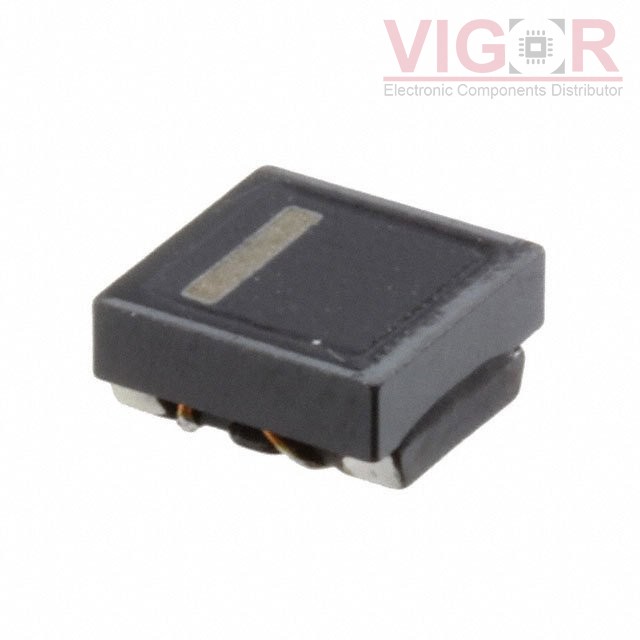

DLW5BTM501TQ2L

Image is for reference,
please contact us to get the real picture

Part No :: DLW5BTM501TQ2L

Manufacturer: TOKO / Murata

Description: CMC 4A 2LN 500 OHM SMD

Catalog: Common Mode Chokes

DataSheet: DLW5BTM501TQ2L PDF

Availability: 0 pieces

Unit Price: ~~$1.17000~~

Current price of DLW5BTM501TQ2L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DLW5BTM501TQ2L Specifications

Type	Description
Series:	DLW5B
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power, Signal Line
Number of Lines:	2
Impedance @ Frequency:	500 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	27mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height (Max):	0.098" (2.50mm)
Package / Case:	Horizontal, 6 PC Pad
