B82720S2601N040

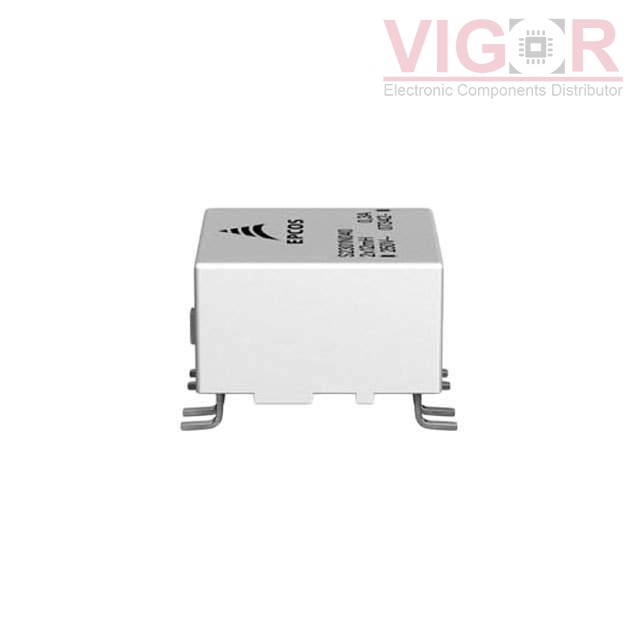

Image is for reference,
please contact us to get the real picture

Part No :: B82720S2601N040

Manufacturer: TDK EPCOS

Description: CMC 4.4MH 600MA 2LN SMD

Catalog: Common Mode Chokes

DataSheet: B82720S2601N040 PDF

Availability: 3035 pieces

Unit Price: ~~$2.95000~~

Current price of B82720S2601N040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82720S2601N040 Specifications

Type	Description
Series:	B82720
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	4.4 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	600mA
DC Resistance (DCR) (Max):	400mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.571" L x 0.524" W (14.50mm x 13.30mm)
Height (Max):	0.421" (10.70mm)
Package / Case:	Horizontal, 8 Gull Wing
