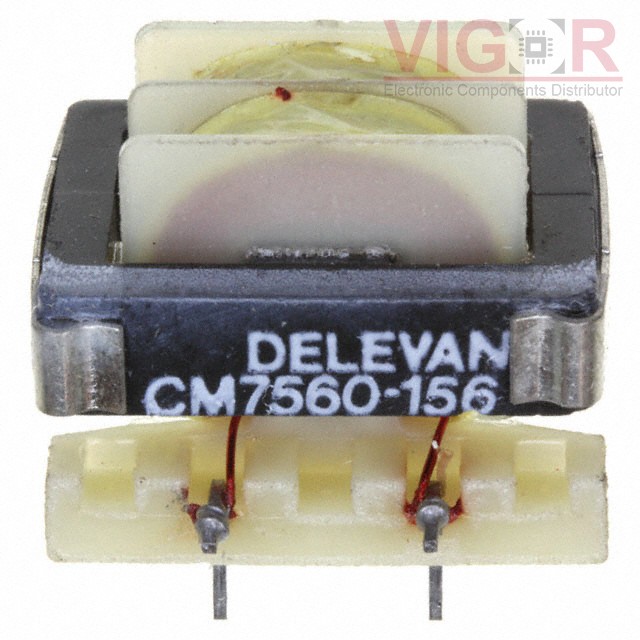

CM7560-156

Part No :: CM7560-156

Manufacturer: API Delevan

VIGOR # :: 4038387

Description: CMC 15MH 700MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: CM7560-156 PDF

Country of origin: -

Date code: -

CM7560-156 Specifications

Type	Description
Series:	CM7560
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	15 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	700mA
DC Resistance (DCR) (Max):	1Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.071" L x 0.858" W (27.20mm x 21.80mm)
Height (Max):	0.861" (21.86mm)
Package / Case:	Vertical, 4 PC Pin
