8115-RC

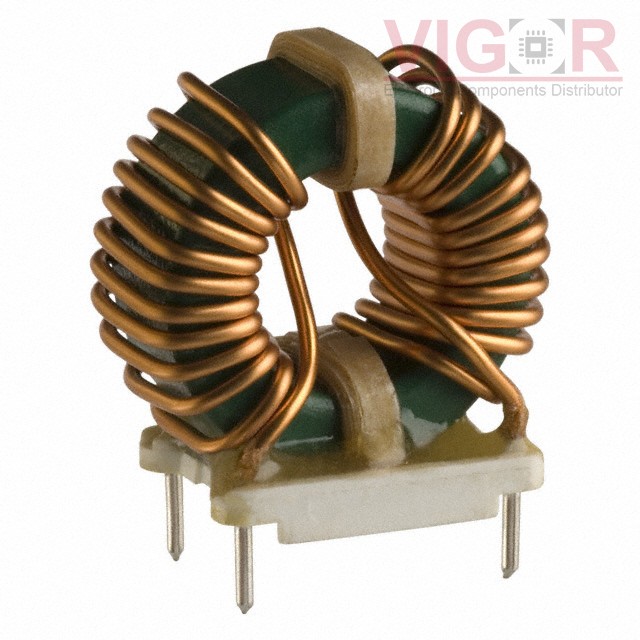

Image is for reference,
please contact us to get the real picture

Part No :: 8115-RC

Manufacturer: J.W. Miller / Bourns

Description: CMC 1.2MH 16A 2LN TH

Catalog: Common Mode Chokes

DataSheet: 8115-RC PDF

Availability: 435 pieces

Unit Price: ~~$9.88000~~

Current price of 8115-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

8115-RC Specifications

Type	Description
Series:	8100
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1.2 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	16A
DC Resistance (DCR) (Max):	6mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.500" L x 0.800" W (38.10mm x 20.32mm)
Height (Max):	1.530" (38.86mm)
Package / Case:	Vertical, 4 PC Pin
