744212101

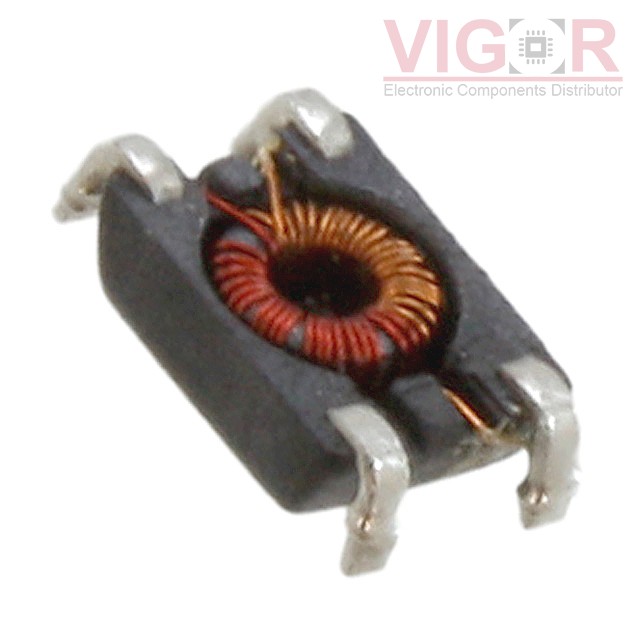

Image is for reference,
please contact us to get the real picture

Part No :: 744212101

Manufacturer: Würth Elektronik Midcom

Description: CMC 100UH 300MA 2LN 500 OHM SMD

Catalog: Common Mode Chokes

DataSheet: 744212101 PDF

Availability: 1018 pieces

Unit Price: ~~$4.22000~~

Current price of 744212101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744212101 Specifications

Type	Description
Series:	WE-SL1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power, Signal Line
Number of Lines:	2
Impedance @ Frequency:	500 Ohms @ 60 MHz
Inductance @ Frequency:	100 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	220mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max):	0.071" (1.80mm)
Package / Case:	Horizontal, 4 J-Lead
