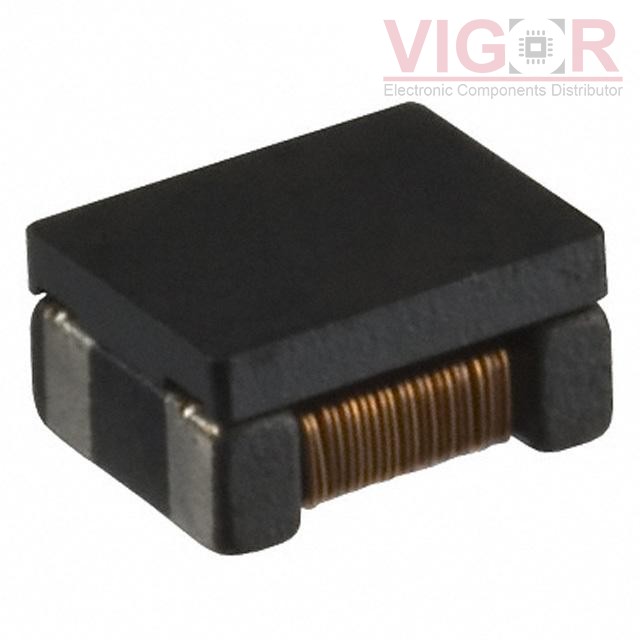

ACM2520-801-3P-T002

Part No :: ACM2520-801-3P-T002

Manufacturer: TDK Corporation

VIGOR # :: 4038499

Description: CMC 150MA 3LN 800 OHM SMD

Catalog: Common Mode Chokes

DataSheet: ACM2520-801-3P-T002 PDF

Country of origin: -

Date code: -

ACM2520-801-3P-T002 Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	3
Impedance @ Frequency:	800 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	150mA
DC Resistance (DCR) (Max):	1.6Ohm
Voltage Rating - DC:	20V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Max):	0.051" (1.30mm)
Package / Case:	Horizontal, 6 PC Pad
