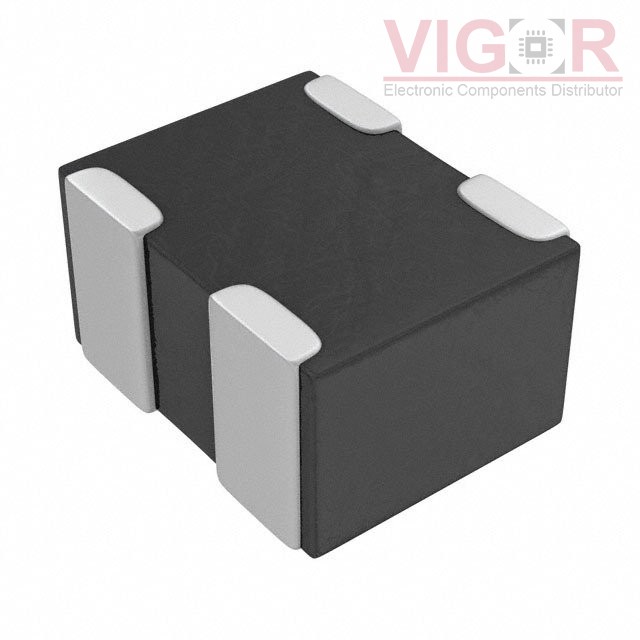

EXC-14CE121U

Part No :: EXC-14CE121U

Manufacturer: Panasonic

Description: CMC 100MA 2LN 120 OHM SMD

Catalog: Common Mode Chokes

DataSheet: EXC-14CE121U PDF

Availability: 17315 pieces

Current price of EXC-14CE121U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EXC-14CE121U Specifications

Type	Description
Series:	EXC14
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	120 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	3.8Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max):	0.020" (0.50mm)
Package / Case:	0302 (0806 Metric)

Please confirm the specifications of the products when ordering.
