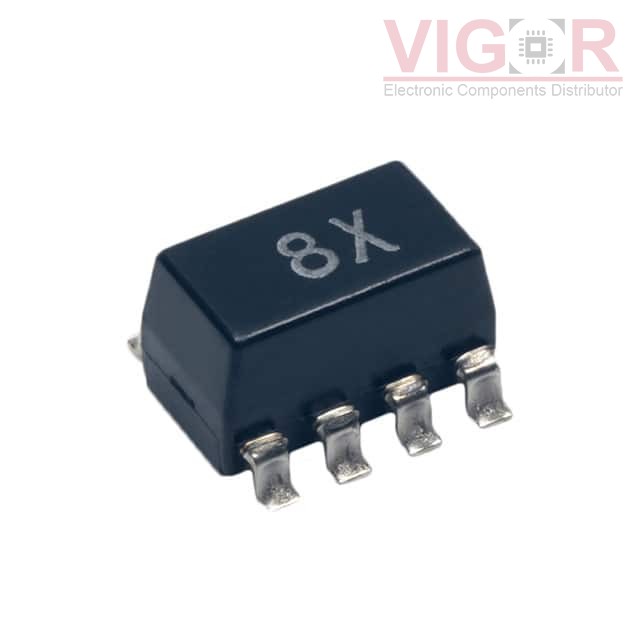

M-543CT

Part No :: M-543CT

Manufacturer: KEMET

Description: CMC, SMD, 700OHM, 100MOHM

Catalog: Common Mode Chokes

DataSheet: M-543CT PDF

Availability: 0 pieces

Current price of M-543CT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M-543CT Specifications

Type	Description
Series:	M-500CT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	700 Ohms @ 10 MHz
Inductance @ Frequency:	700 µH @ 10 MHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	-
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.394" L x 0.217" W (10.00mm x 5.50mm)
Height (Max):	0.197" (5.00mm)
Package / Case:	-
