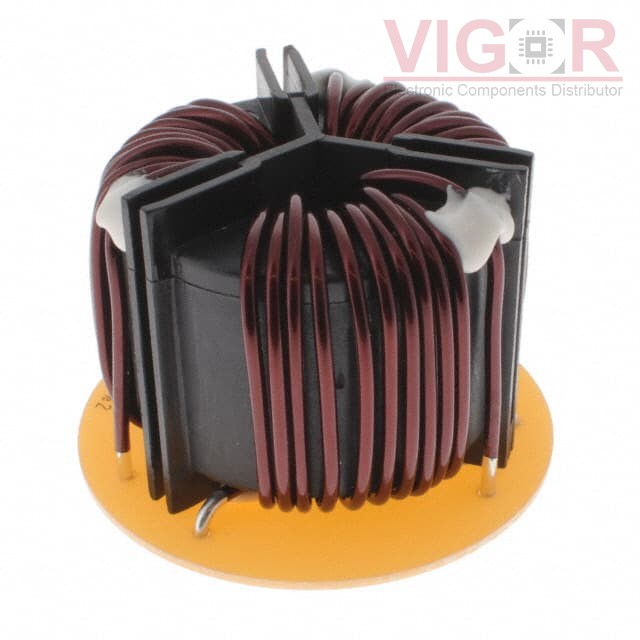

SCR47B-200-S2R0A025JH-P

Part No :: SCR47B-200-S2R0A025JH-P

Manufacturer: KEMET

Description: CMC 2.5MH,20A, 0.0078OHM

Catalog: Common Mode Chokes

DataSheet: SCR47B-200-S2R0A025JH-P PDF

Availability: 22 pieces

Current price of SCR47B-200-S2R0A025JH-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCR47B-200-S2R0A025JH-P Specifications

Type	Description
Series:	*
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	2.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	20A
DC Resistance (DCR) (Max):	7.8mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.756" Dia (70.00mm)
Height (Max):	1.890" (48.00mm)
Package / Case:	Horizontal, 6 PC Pin

Please confirm the specifications of the products when ordering.
