CMT-8110

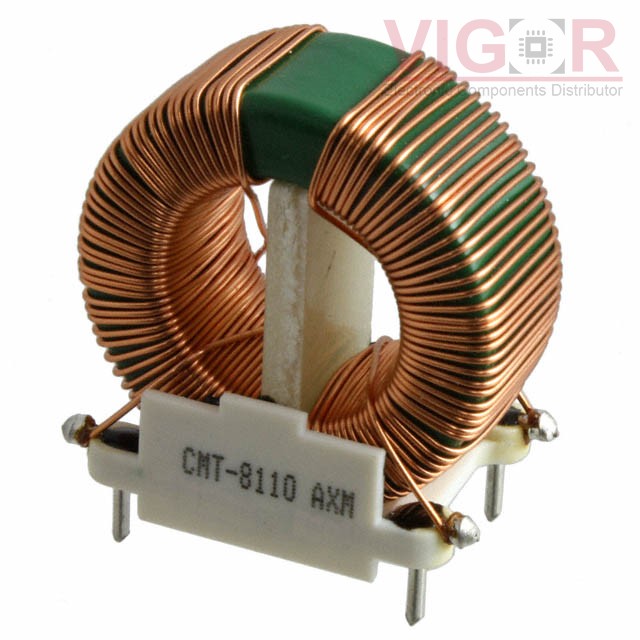

Product image
Product thumb
Part No :

CMT-8110

Manufacturer
Triad Magnetics
VIGOR # :

4038574

Description
CMC 20MH 2.9A 2LN TH
Catalog
Common Mode Chokes
DataSheet
CMT-8110 PDF
Country of origin
-
Date code
-
ads
CMT-8110 Specifications
Type Description
Series:CMT
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:20 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2.9A
DC Resistance (DCR) (Max):210mOhm
Voltage Rating - DC:-
Voltage Rating - AC:1500V (1.5kV)
Operating Temperature:-55°C ~ 105°C
Ratings:-
Approval Agency:CSA, IEC, UL, VDE
Features:ESD
Mounting Type:Through Hole
Size / Dimension:1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max):1.450" (36.83mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 150
Shipped from
HK warehouse
Expected Shipping Date
Mar 30 - Apr 03 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $7.1300 $7.13
10 $6.4188 $64.19
100 $4.5645 $456.45
500 $4.2792 $2 139.62
1000 $3.9940 $3 993.95

Current price of CMT-8110 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
HCTC-1-4.8

HCTC-1-4.8

HIGH CURRENT TORROIDAL CHOKE

B82724A2501N020

B82724A2501N020

CMC 68MH 500MA 2LN TH

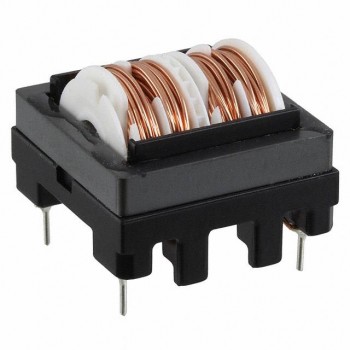

SS28H-R20130-CH
