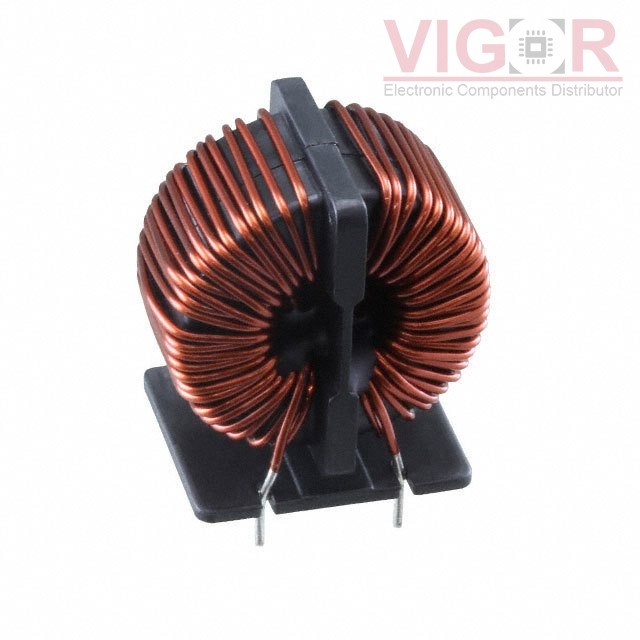

RT8522-12-5M0

Part No :: RT8522-12-5M0

Manufacturer: Schaffner EMC, Inc.

VIGOR # :: 4038612

Description: COMMON MODE CHOKE 5MH 12A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RT8522-12-5M0 PDF

Country of origin: -

Date code: -

RT8522-12-5M0 Specifications

Type	Description
Series:	RT
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	12A
DC Resistance (DCR) (Max):	14mOhm (Typ)
Voltage Rating - DC:	425V
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.969" L x 1.260" W (50.00mm x 32.00mm)
Height (Max):	2.047" (52.00mm)
Package / Case:	Vertical, 4 PC Pin
