B82730G3601A020

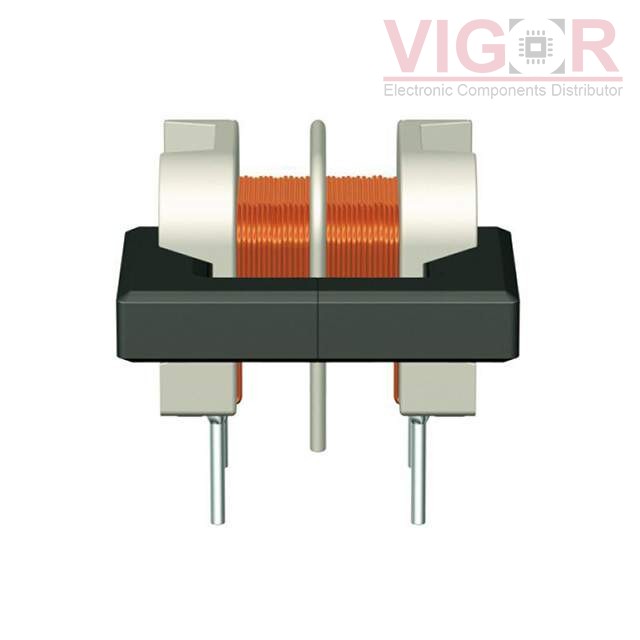

Image is for reference,
please contact us to get the real picture

Part No :: B82730G3601A020

Manufacturer: TDK EPCOS

Description: CMC 4.7MH 600MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: B82730G3601A020 PDF

Availability: 1065 pieces

Unit Price: ~~$2.06000~~

Current price of B82730G3601A020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82730G3601A020 Specifications

Type	Description
Series:	B82730
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	4.7 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	600mA
DC Resistance (DCR) (Max):	920mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.650" L x 0.591" W (16.50mm x 15.00mm)
Height (Max):	0.472" (12.00mm)
Package / Case:	Horizontal, 4 PC Pin
