EH28-4.0-02-3M5-X

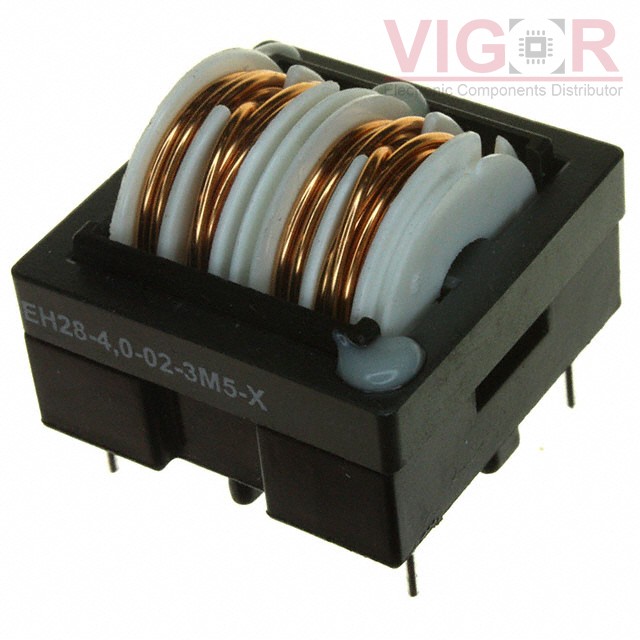

Image is for reference,
please contact us to get the real picture

Part No :: EH28-4.0-02-3M5-X

Manufacturer: Schaffner EMC, Inc.

Description: CMC 3.5MH 4A 2LN TH

Catalog: Common Mode Chokes

DataSheet: EH28-4.0-02-3M5-X PDF

Availability: 466 pieces

Unit Price: ~~$3.19000~~

Current price of EH28-4.0-02-3M5-X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EH28-4.0-02-3M5-X Specifications

Type	Description
Series:	EH
Package:	Tube
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3.5 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	52mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.102" L x 1.102" W (28.00mm x 28.00mm)
Height (Max):	0.941" (23.90mm)
Package / Case:	Horizontal, 4 PC Pin
