UT2024-006

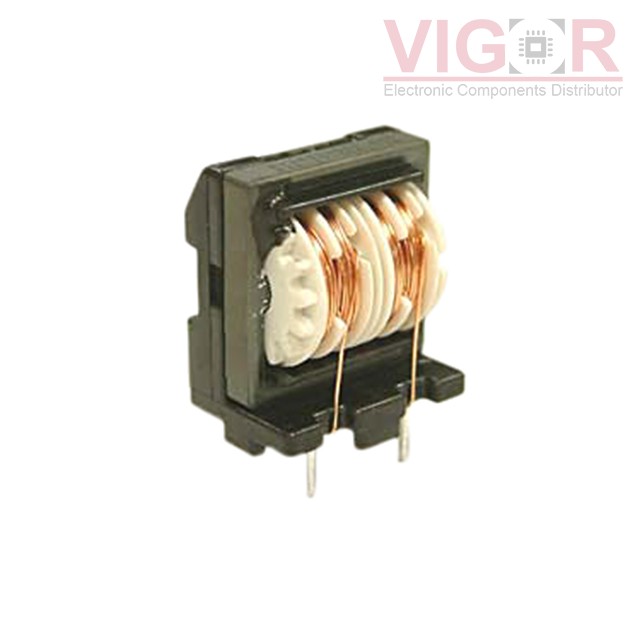

Image is for reference,
please contact us to get the real picture

Part No :: UT2024-006

Manufacturer: Triad Magnetics

Description: COMMON MODE CHOKE 500MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: UT2024-006 PDF

Availability: 0 pieces

Unit Price: ~~$3.72000~~

Current price of UT2024-006 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UT2024-006 Specifications

Type	Description
Series:	UT
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	9 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	1.4Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-20°C ~ 105°C
Ratings:	-
Approval Agency:	CSA, IEC, UL
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	0.728" L x 0.905" W (18.49mm x 22.99mm)
Height (Max):	0.925" (23.50mm)
Package / Case:	Horizontal, 4 PC Pin
