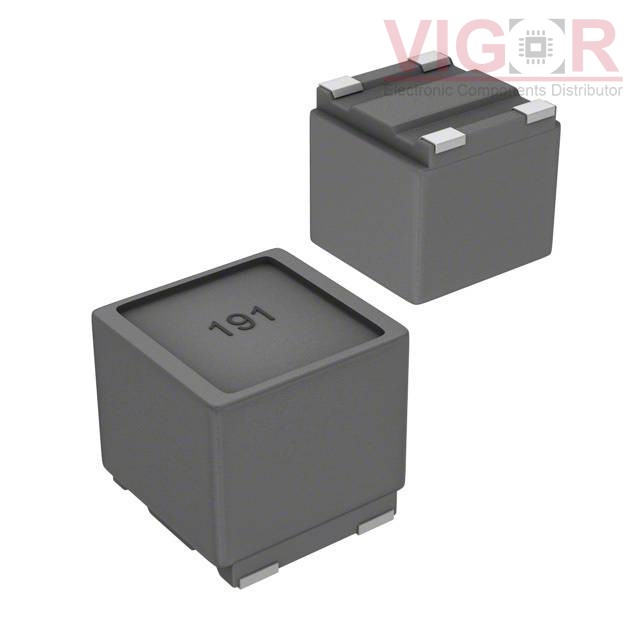

SRF0504-402Y

Part No :: SRF0504-402Y

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4038812

Description: CMC 2.8UH 200MA 2LN 4 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: SRF0504-402Y PDF

Country of origin: -

Date code: -

SRF0504-402Y Specifications

Type	Description
Series:	SRF0504
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	4 kOhms @ 100 MHz
Inductance @ Frequency:	2.8 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	200mA
DC Resistance (DCR) (Max):	300mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.205" L x 0.197" W (5.20mm x 5.00mm)
Height (Max):	0.185" (4.70mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1588

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.47~~	~~$1.47~~
1000	~~$0.66~~	~~$660.00~~
3000	~~$0.64~~	~~$1 920.00~~
5000	~~$0.62~~	~~$3 100.00~~
10000	~~$0.60~~	~~$6 000.00~~

Current price of SRF0504-402Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ACM-21-221M-T

CMC 330MA 2LN 220 OHM SMD

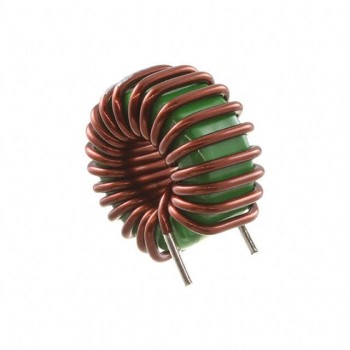

SN12HP-2201

NMC 20.0UH 10.0A 0.0130 OHM TH

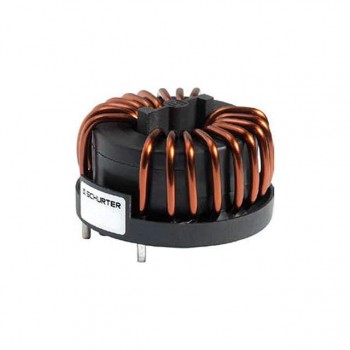

DKIH-3242-160Q-NK
