ACM4520V-421-2P-TL00

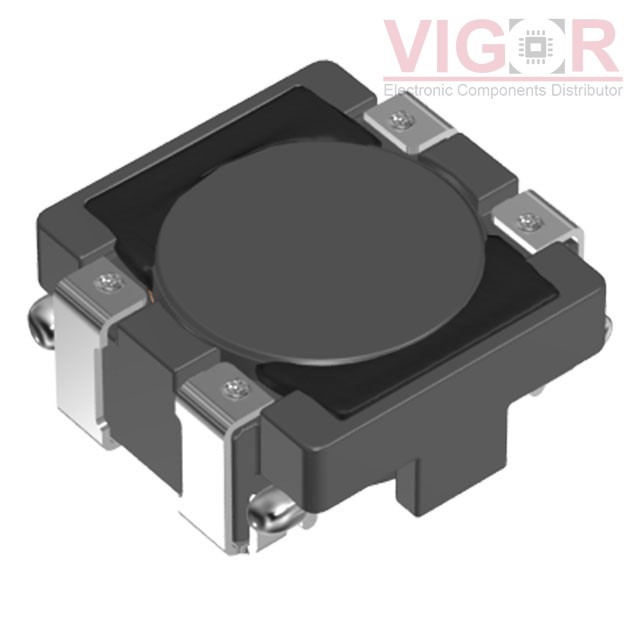

Product image
Product thumb
Part No :

ACM4520V-421-2P-TL00

Manufacturer
TDK Corporation
VIGOR # :

4038862

Description
CMC 1.4A 2LN 420OHM SMD AEC-Q200
Catalog
Common Mode Chokes
DataSheet
ACM4520V-421-2P-TL00 PDF
Country of origin
-
Date code
-
ads
ACM4520V-421-2P-TL00 Specifications
Type Description
Series:ACM-V
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:420 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.4A
DC Resistance (DCR) (Max):55mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max):0.079" (2.00mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.65 $0.65
800 $0.65 $520.80

Current price of ACM4520V-421-2P-TL00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
