CM7560-335

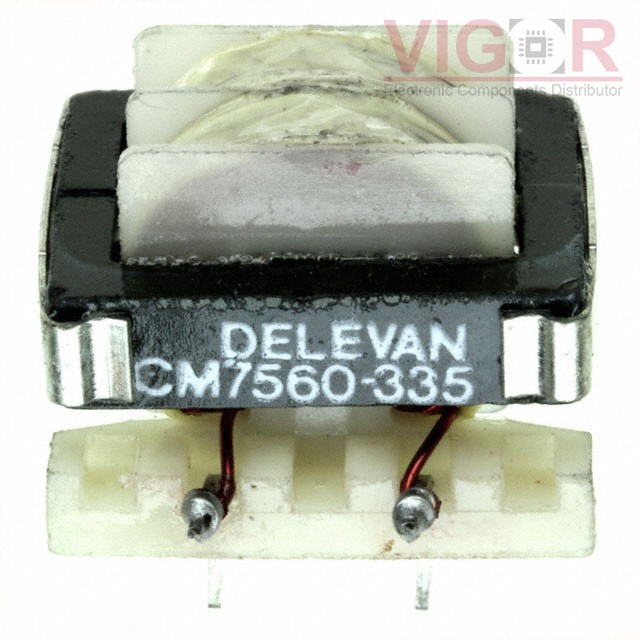

Image is for reference,
please contact us to get the real picture

Part No :: CM7560-335

Manufacturer: API Delevan

Description: CMC 3.3MH 1.1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: CM7560-335 PDF

Availability: 0 pieces

Unit Price: ~~$14.37976~~

Current price of CM7560-335 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CM7560-335 Specifications

Type	Description
Series:	CM7560
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3.3 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.1A
DC Resistance (DCR) (Max):	320mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.071" L x 0.858" W (27.20mm x 21.80mm)
Height (Max):	0.861" (21.86mm)
Package / Case:	Vertical, 4 PC Pin
