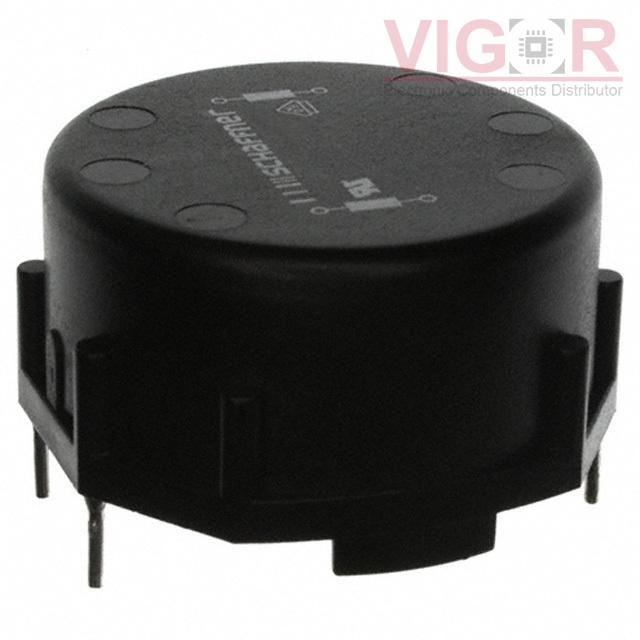

RN152-1-02-68M

Part No :: RN152-1-02-68M

Manufacturer: Schaffner EMC, Inc.

VIGOR # :: 4038949

Description: CMC 68MH 1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RN152-1-02-68M PDF

Country of origin: -

Date code: -

RN152-1-02-68M Specifications

Type	Description
Series:	RN
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	68 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	1.3Ohm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.693" L x 1.646" W (43.00mm x 41.80mm)
Height (Max):	0.996" (25.30mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 100

Shipped from

HK warehouse

Expected Shipping Date

Oct 16 - Oct 20 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.0200~~	~~$5.02~~
10	~~$4.6050~~	~~$46.05~~
100	~~$3.0140~~	~~$301.40~~
500	~~$2.6791~~	~~$1 339.54~~
1000	~~$2.5116~~	~~$2 511.65~~
2500	~~$2.4744~~	~~$6 186.10~~

Current price of RN152-1-02-68M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RN112-1.2-02-6M8

CMC 6.8MH 1.2A 2LN TH

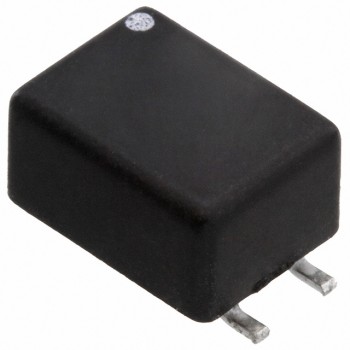

CMJ-2-472

CMC 4.7MH 200MA 2LN SMD

NFG0QHB542HS2D

CMC SMD 5OHM 100MA NONAUTOSMD 06

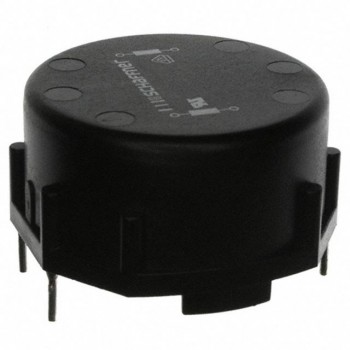

RN152-1-02-68M
