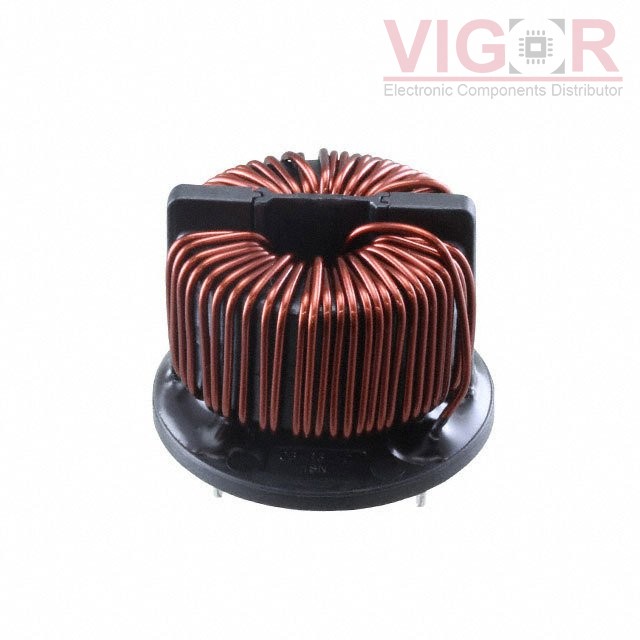

RT8122-12-5M0

Part No :: RT8122-12-5M0

Manufacturer: Schaffner EMC, Inc.

VIGOR # :: 4038970

Description: COMMON MODE CHOKE 5MH 12A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RT8122-12-5M0 PDF

Country of origin: -

Date code: -

RT8122-12-5M0 Specifications

Type	Description
Series:	RT
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	12A
DC Resistance (DCR) (Max):	14mOhm (Typ)
Voltage Rating - DC:	425V
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.008" Dia (51.00mm)
Height (Max):	1.299" (33.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 141

Shipped from

HK warehouse

Expected Shipping Date

Mar 30 - Apr 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.7200~~	~~$9.72~~
60	~~$6.9160~~	~~$414.96~~
120	~~$6.6998~~	~~$803.97~~
540	~~$6.3876~~	~~$3 449.29~~

Current price of RT8122-12-5M0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EV24-1.0-02-10M

COMMON MODE CHOKE 10MH 1A 2LN TH

SSHB10HS-17019

CMC 1.9MH 1.7A 2LN TH

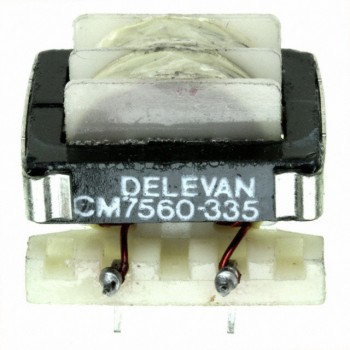

CM7560-334
