B82724J8612N040

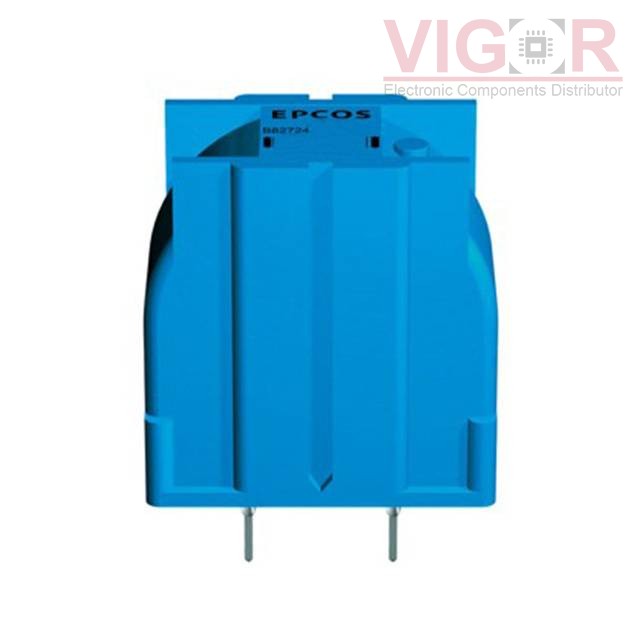

Image is for reference,
please contact us to get the real picture

Part No :: B82724J8612N040

Manufacturer: TDK EPCOS

Description: RING CORE CHOKE 2X1,5MH 6,1A +70

Catalog: Common Mode Chokes

DataSheet: B82724J8612N040 PDF

Availability: 439 pieces

Unit Price: ~~$5.28000~~

Current price of B82724J8612N040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82724J8612N040 Specifications

Type	Description
Series:	B82724
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	6.1A
DC Resistance (DCR) (Max):	14mOhm (Typ)
Voltage Rating - DC:	800V
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.232" L x 0.728" W (31.30mm x 18.50mm)
Height (Max):	1.307" (33.20mm)
Package / Case:	Vertical, 4 PC Pin
