7446722002

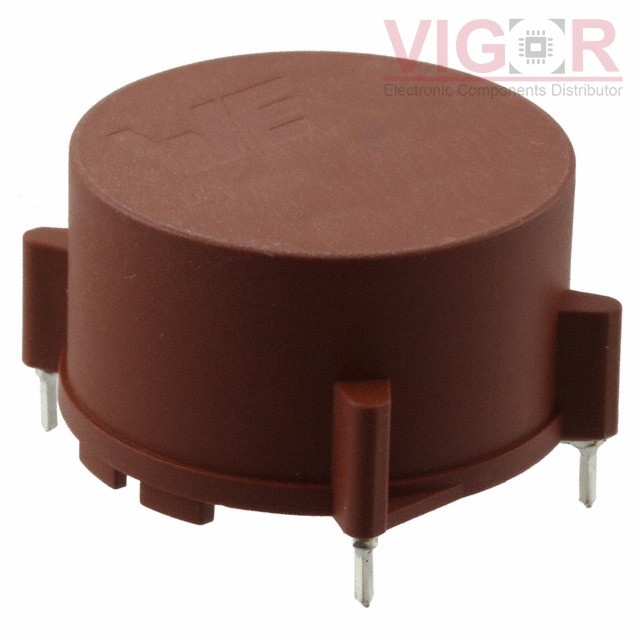

Product image
Product thumb
Part No :

7446722002

Manufacturer
Würth Elektronik Midcom
VIGOR # :

4039025

Description
CMC 2.2MH 2A 2LN TH
Catalog
Common Mode Chokes
DataSheet
7446722002 PDF
Country of origin
-
Date code
-
ads
7446722002 Specifications
Type Description
Series:WE-LF
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:2.2 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2A
DC Resistance (DCR) (Max):60mOhm
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max):0.571" (14.50mm)
Package / Case:Horizontal, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 16
Shipped from
HK warehouse
Expected Shipping Date
Mar 29 - Apr 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.0500 $5.05
10 $4.9500 $49.50
50 $4.5700 $228.50
100 $4.3790 $437.90
200 $3.9030 $780.60
384 $3.7130 $1 425.80

Current price of 7446722002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DLM0NSB120HY2D

DLM0NSB120HY2D

CMC

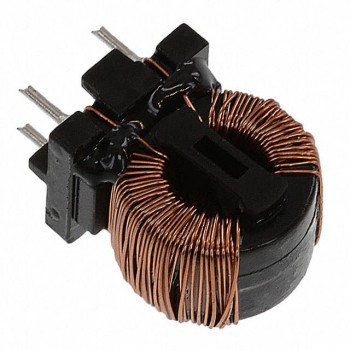

7448021230

7448021230

WE-CMBNC COMMON MODE POWER LINE

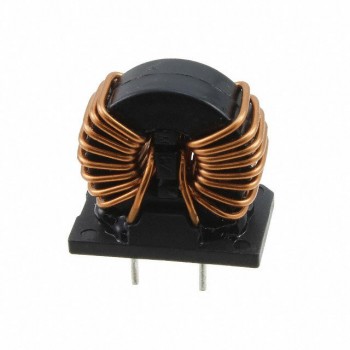

7448041104
