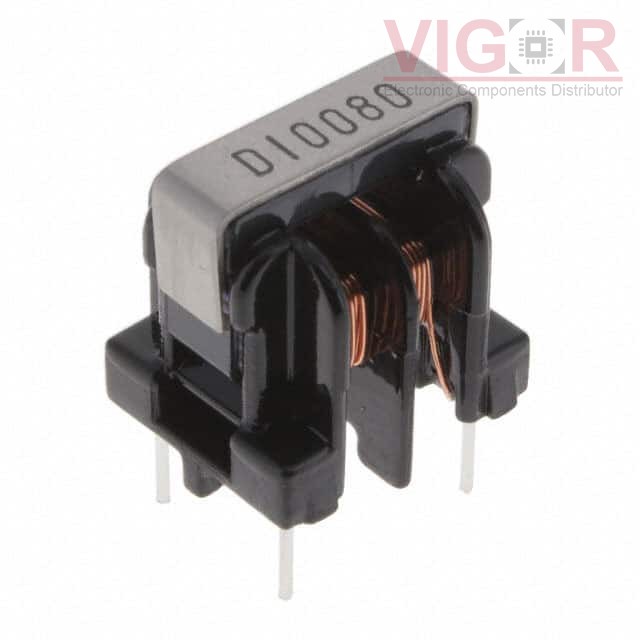

SU10VD-10080

Image is for reference,
please contact us to get the real picture

Part No :: SU10VD-10080

Manufacturer: KEMET

Description: CMC 0.08MH,1A, 0.2OHM

Catalog: Common Mode Chokes

DataSheet: SU10VD-10080 PDF

Availability: 0 pieces

Unit Price: ~~$2.07000~~

Current price of SU10VD-10080 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SU10VD-10080 Specifications

Type	Description
Series:	SU
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	80 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	200mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max):	0.787" (20.00mm)
Package / Case:	Vertical, 4 PC Pin
