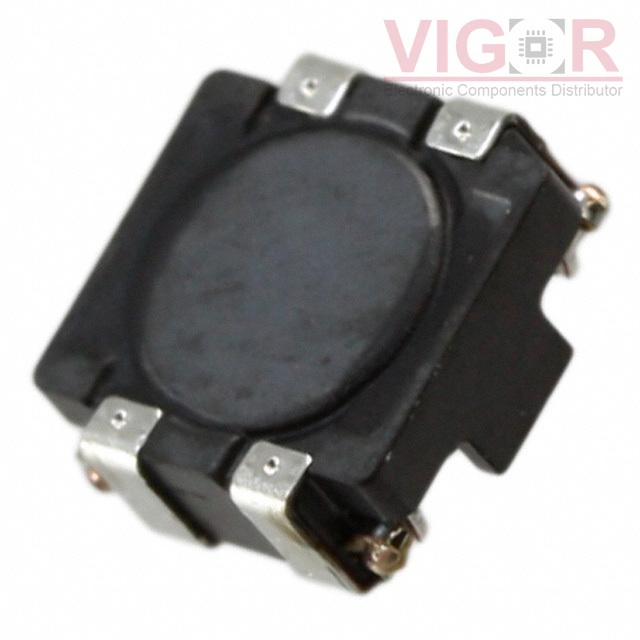

ACM4520-231-2P-T000

Image is for reference,
please contact us to get the real picture

Part No :: ACM4520-231-2P-T000

Manufacturer: TDK Corporation

Description: CMC 3A 2LN 230 OHM SMD

Catalog: Common Mode Chokes

DataSheet: ACM4520-231-2P-T000 PDF

Availability: 42842 pieces

Unit Price: ~~$1.05000~~

Current price of ACM4520-231-2P-T000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACM4520-231-2P-T000 Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	230 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	3A
DC Resistance (DCR) (Max):	50mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max):	0.079" (2.00mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
