ACM2012H-381-2P-T05

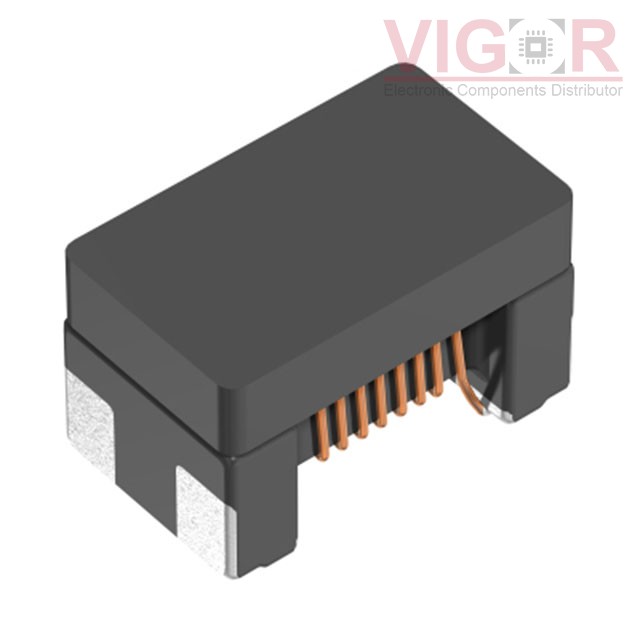

Image is for reference,
please contact us to get the real picture

Part No :: ACM2012H-381-2P-T05

Manufacturer: TDK Corporation

Description: COMMON MODE FILTERS FOR ULTRA HI

Catalog: Common Mode Chokes

DataSheet: ACM2012H-381-2P-T05 PDF

Availability: 903 pieces

Unit Price: ~~$0.55000~~

Current price of ACM2012H-381-2P-T05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACM2012H-381-2P-T05 Specifications

Type	Description
Series:	ACM-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	380 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	500mOhm
Voltage Rating - DC:	20V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max):	0.051" (1.30mm)
Package / Case:	Horizontal, 4 PC Pad
