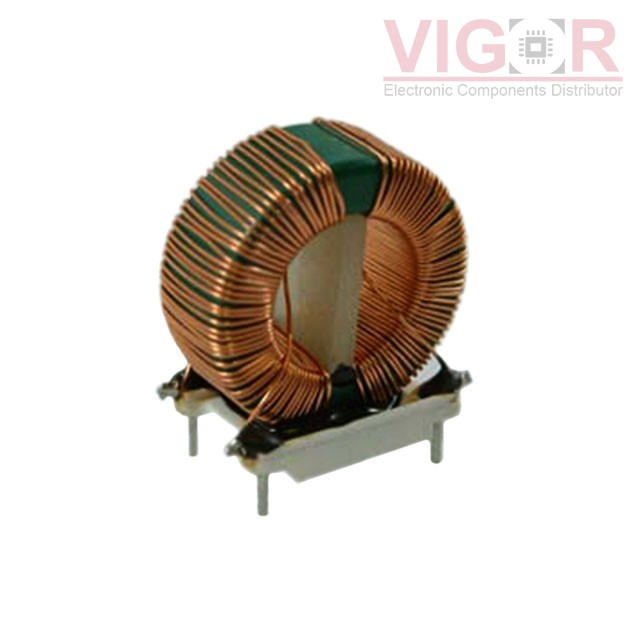

CMT-8109-B

Part No :: CMT-8109-B

Manufacturer: Triad Magnetics

VIGOR # :: 4039145

Description: CMC 30MH 2.3A 2LN TH

Catalog: Common Mode Chokes

DataSheet: CMT-8109-B PDF

Country of origin: -

Date code: -

CMT-8109-B Specifications

Type	Description
Series:	CMT
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	30 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.3A
DC Resistance (DCR) (Max):	330mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	1500V (1.5kV)
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	CSA, IEC, UL, VDE
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max):	1.450" (36.83mm)
Package / Case:	Vertical, 4 PC Pin
