LF2115NP-103

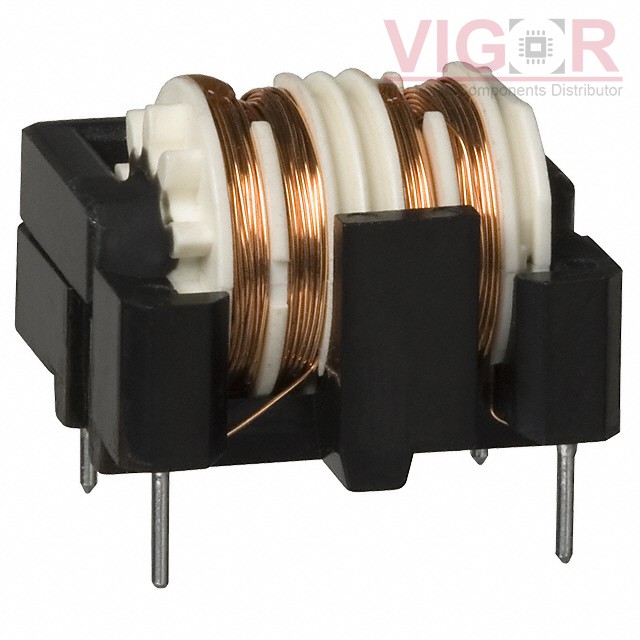

Image is for reference,
please contact us to get the real picture

Part No :: LF2115NP-103

Manufacturer: Sumida Corporation

Description: CMC 10MH 600MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: LF2115NP-103 PDF

Availability: 0 pieces

Unit Price: ~~$1.01430~~

Current price of LF2115NP-103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LF2115NP-103 Specifications

Type	Description
Series:	LF
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	10 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	600mA
DC Resistance (DCR) (Max):	1Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max):	0.669" (17.00mm)
Package / Case:	Vertical, 4 PC Pin
