PL8209

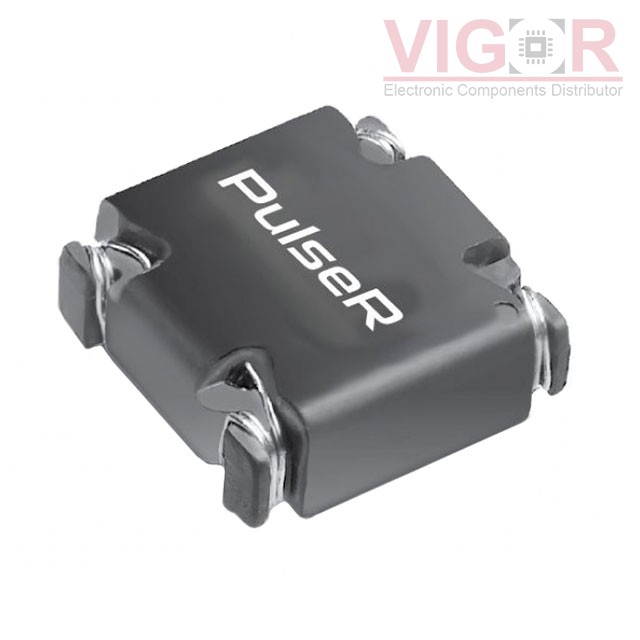

Image is for reference,
please contact us to get the real picture

Part No :: PL8209

Manufacturer: PulseR (iNRCORE

Description: COMMON MODE CHOKE 1.63A 2LN SMD

Catalog: Common Mode Chokes

DataSheet: PL8209 PDF

Availability: 335 pieces

Unit Price: ~~$8.14000~~

Current price of PL8209 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PL8209 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.63A
DC Resistance (DCR) (Max):	110mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 130°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max):	0.215" (5.46mm)
Package / Case:	Horizontal, 4 PC Pad
