CM7060R301R-10

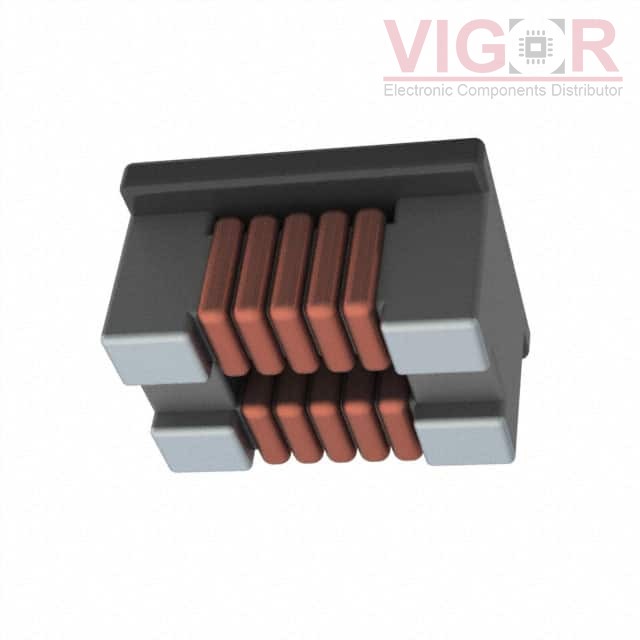

Image is for reference,
please contact us to get the real picture

Part No :: CM7060R301R-10

Manufacturer: Laird - Performance Materials

Description: CMC 5A 2LN 300 OHM SMD

Catalog: Common Mode Chokes

DataSheet: CM7060R301R-10 PDF

Availability: 10471 pieces

Unit Price: ~~$1.97000~~

Current price of CM7060R301R-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CM7060R301R-10 Specifications

Type	Description
Series:	CM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	300 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	10mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max):	0.150" (3.80mm)
Package / Case:	Horizontal, 4 PC Pad
