PLT5BPH2014R4SNL

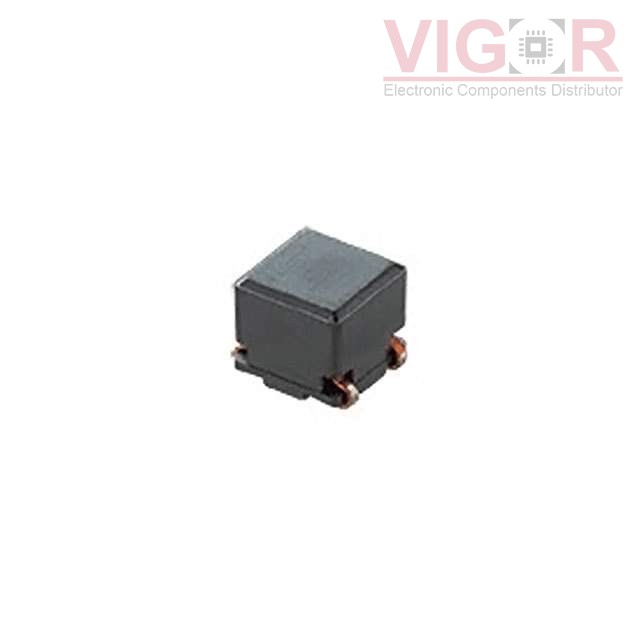

Image is for reference,
please contact us to get the real picture

Part No :: PLT5BPH2014R4SNL

Manufacturer: TOKO / Murata

Description: CMC 2.4A 2LN 200OHM SMD AEC-Q200

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Sep 29 - Oct 03 2025

DataSheet: PLT5BPH2014R4SNL PDF

Availability: 169 pieces

Unit Price: ~~$1.70000~~

Current price of PLT5BPH2014R4SNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PLT5BPH2014R4SNL Specifications

Type	Description
Series:	PLT5BPH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	200 Ohms @ 10 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.4A
DC Resistance (DCR) (Max):	9.1mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height (Max):	0.197" (5.00mm)
Package / Case:	Vertical, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

EV35-3.0-02-10M

COMMON MODE CHOKE 10MH 3A 2LN TH

HOT

ACM2012H-900-2P-T05

CMC 300MA 2LN 90 OHM SMD

HOT

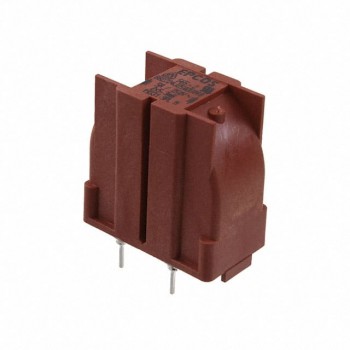

B82724J2502U040
