CM2824E182R-10

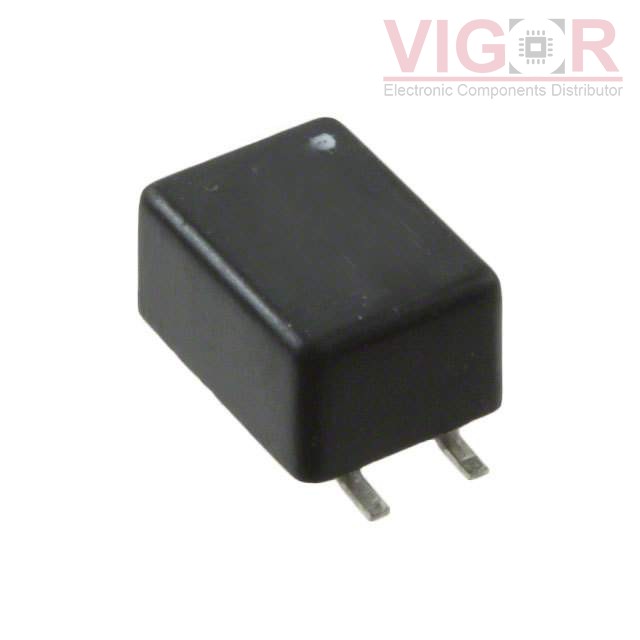

Image is for reference,
please contact us to get the real picture

Part No :: CM2824E182R-10

Manufacturer: Laird - Performance Materials

Description: CMC 800MA 2LN 1.8 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: CM2824E182R-10 PDF

Availability: 0 pieces

Unit Price: ~~$3.16691~~

Current price of CM2824E182R-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CM2824E182R-10 Specifications

Type	Description
Series:	CM
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	Power, Signal Line
Number of Lines:	2
Impedance @ Frequency:	1.8 kOhms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	260mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.354" L x 0.217" W (9.00mm x 5.50mm)
Height (Max):	0.193" (4.90mm)
Package / Case:	Horizontal, 4 Flat Lead
