B82787C0104H002

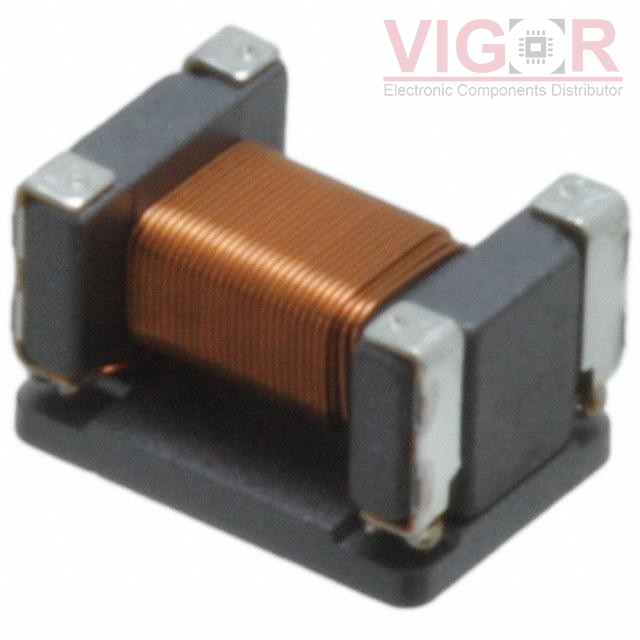

Image is for reference,
please contact us to get the real picture

Part No :: B82787C0104H002

Manufacturer: TDK EPCOS

Description: CMC 100UH 150MA 2LN SMD AEC-Q200

Catalog: Common Mode Chokes

DataSheet: B82787C0104H002 PDF

Availability: 2606 pieces

Unit Price: ~~$1.41000~~

Current price of B82787C0104H002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82787C0104H002 Specifications

Type	Description
Series:	ACT45B
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	5.8 kOhms @ 10 MHz
Inductance @ Frequency:	100 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	150mA
DC Resistance (DCR) (Max):	2Ohm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.118" (3.00mm)
Package / Case:	Horizontal, 4 PC Pad
