EXC-14CS900H

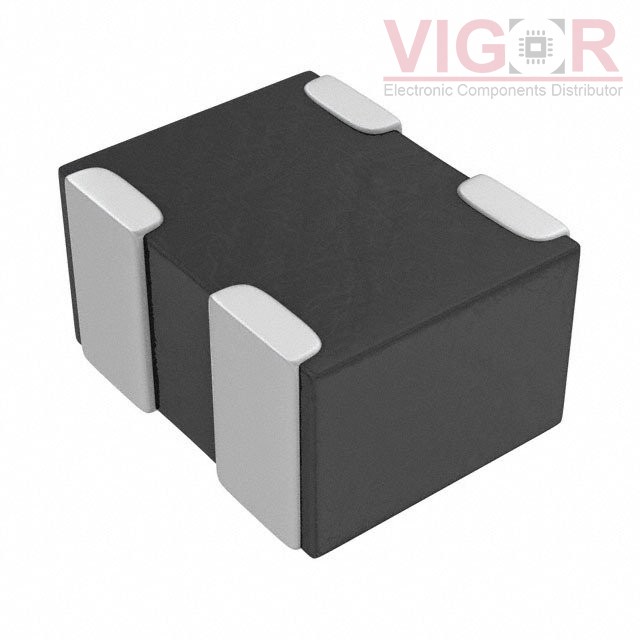

Image is for reference,
please contact us to get the real picture

Part No :: EXC-14CS900H

Manufacturer: Panasonic

Description: CMC 100MA 2LN 90 OHM SMD ESD

Catalog: Common Mode Chokes

DataSheet: EXC-14CS900H PDF

Availability: 0 pieces

Unit Price: ~~$0.20000~~

Current price of EXC-14CS900H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EXC-14CS900H Specifications

Type	Description
Series:	EXC14
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	90 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	3.3Ohm (Typ)
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	ESD
Mounting Type:	Surface Mount
Size / Dimension:	0.034" L x 0.026" W (0.86mm x 0.66mm)
Height (Max):	0.020" (0.50mm)
Package / Case:	0302 (0806 Metric)

Please confirm the specifications of the products when ordering.
