ELF-18D235F

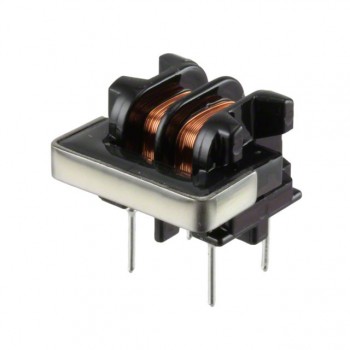

Image is for reference,
please contact us to get the real picture

Part No :: ELF-18D235F

Manufacturer: Panasonic

Description: CMC 47MH 300MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: ELF-18D235F PDF

Availability: 505 pieces

Unit Price: ~~$1.58000~~

Current price of ELF-18D235F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELF-18D235F Specifications

Type	Description
Series:	H
Package:	Bulk
Part Status:	Obsolete
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	47 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	2.768Ohm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-20°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.787" L x 0.827" W (20.00mm x 21.00mm)
Height (Max):	0.787" (20.00mm)
Package / Case:	Vertical, 4 PC Pin
