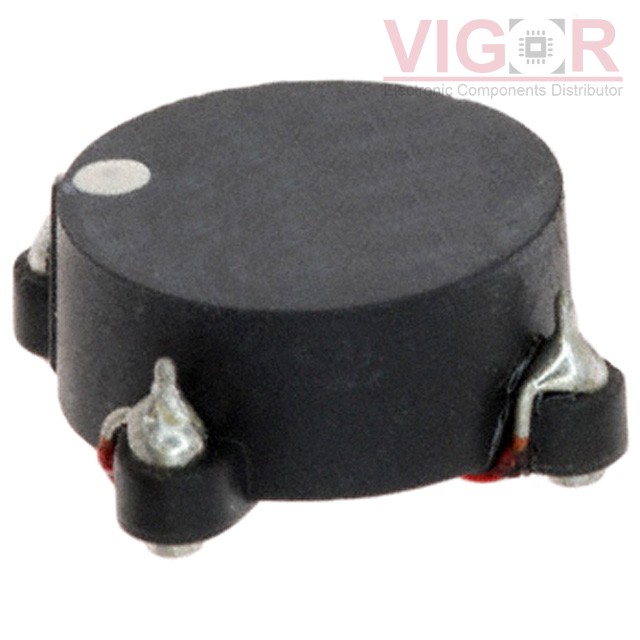

CM6560R-505

Part No :: CM6560R-505

Manufacturer: API Delevan

VIGOR # :: 4039473

Description: CMC 5MH 950MA 2LN SMD

Catalog: Common Mode Chokes

DataSheet: CM6560R-505 PDF

Country of origin: -

Date code: -

CM6560R-505 Specifications

Type	Description
Series:	CM6560R
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	950mA
DC Resistance (DCR) (Max):	240mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max):	0.320" (8.13mm)
Package / Case:	Horizontal, 4 PC Pad
