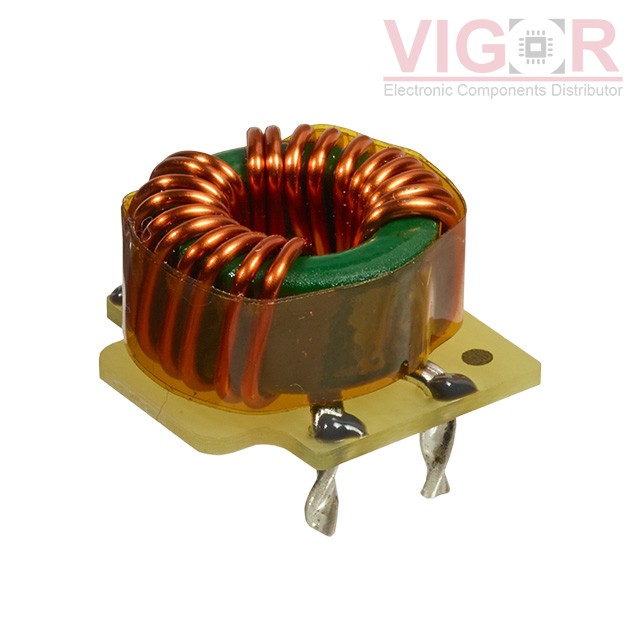

TCK-086

Image is for reference,
please contact us to get the real picture

Part No :: TCK-086

Manufacturer: TRACO Power

Description: CMC 156UH 25A 2LN TH

Catalog: Common Mode Chokes

DataSheet: TCK-086 PDF

Availability: 406 pieces

Unit Price: ~~$7.27000~~

Current price of TCK-086 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TCK-086 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	156 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	25A
DC Resistance (DCR) (Max):	2.5mOhm
Voltage Rating - DC:	500V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max):	0.492" (12.50mm)
Package / Case:	Horizontal, 4 PC Pin
