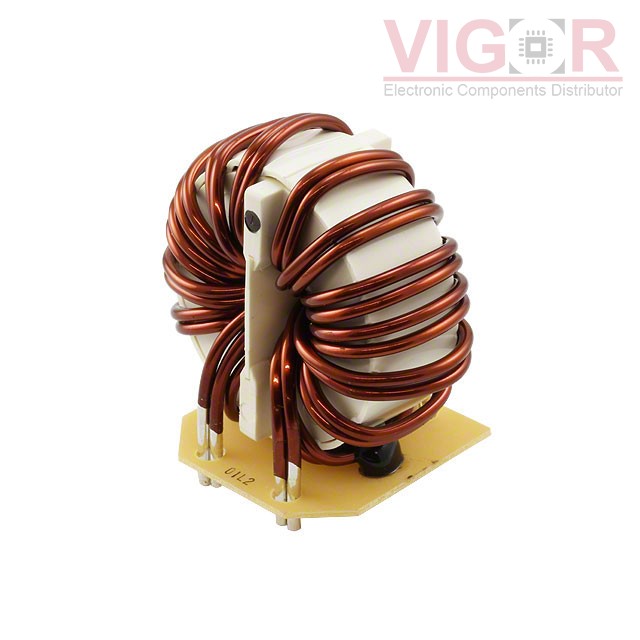

SCR22-050-0R9A100J

Image is for reference,
please contact us to get the real picture

Part No :: SCR22-050-0R9A100J

Manufacturer: KEMET

Description: CMC 10MH 5.0A 0.06OHM TH

Catalog: Common Mode Chokes

DataSheet: SCR22-050-0R9A100J PDF

Availability: 84 pieces

Unit Price: ~~$5.50000~~

Current price of SCR22-050-0R9A100J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCR22-050-0R9A100J Specifications

Type	Description
Series:	SCR
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	10 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	60mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max):	0.945" (24.00mm)
Package / Case:	Vertical, 4 PC Pin
